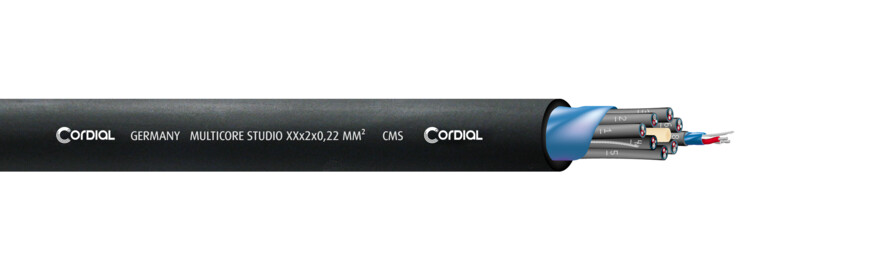

Our CMS 8 multicore with 8 channels is the perfect solution for studio installations. Due to the foil shielded conductor pairs (with drain wire) and the overall foil shielding, both external interferences and interferences between the conductor pairs are prevented. With a conductor area of 0.22 mm², they transmit the signals safely from the recording room to the control center.
The CMS Multicores are available with 4, 8, 12, 16, or 24 channels.
| Jacket | PVC |
| Conductor area | 0.22 mm² |
| Composition of cores | 8 pairs twisted |
| AWG | AWG 24 |
| Shielding | foil (PT/AL) + drain wire (100 % covering) |
| Composition of conductor | 7 x 0.20 mm |
| Pair screen | foil (PT/AL) + drain wire (100 % covering) |
| Material | tinned copper |
| Conductor isolation | PE |
| Conductor resistance | 87 Ohm/km |
| Capacity cond.-cond. (pF/m) | 61 pF/m |
| Category | Multicore |
| weight bulk cable | 141 g/m |
| diameter | 12.3 ± 0.5 mm |
| test voltage | 500 V eff. |
| Colour | Matchcode | item no. |
| CMS 8 | 10890 |
