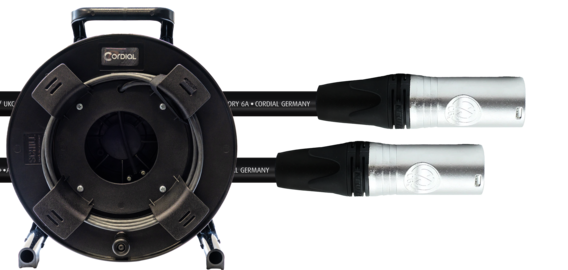

Our CSE NN-SD 6A PUR cable drum features our CCAT 6A PUR bulk cable, Neutrik® etherCON® connectors and the extremely robust SCHILL® cable drum GT310.
It has specifically been developed for demanding stage or outdoor applications where robustness, flexibility, durability and performance are essential.
This cable features double shielding, a flexible inner conductor (AWG 24/7) and supports Power over Ethernet (PoE++) with an output of up to 99.9 watts and is therefore ideally suited for audio networks, lighting control, EtherSound™ as well as mobile stage applications and outdoor transmissions. In addition to that the cable is reelable, robust and yet flexible, making it especially suitable for cable drum use.
- Highly flexible, robust, reelable
- PUR jacket for mobile indoor/outdoor applications
- Data class CAT 6A (500 MHz)
- Overall shield SF/UTP
- AWG 24/7, with 7 strands/conductors
- PoE++ complying with IEEE 802.3af-2018 (99.9W) standards, max. channel PoE (99.9W) 64 m
- Neutrik® etherCON® connector
- SCHILL® cable drum
- Transparent shrink-on tube for easy cable identification
Applications: Data, Ethernet, audio networks, lighting control, EtherSound™
