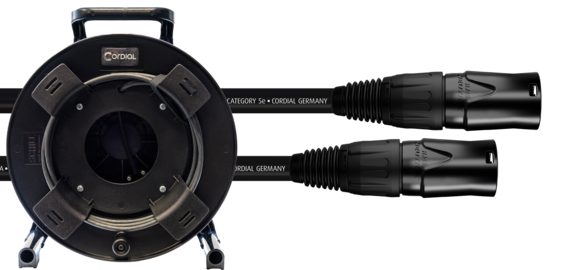

Our CSE NN-SD 5e PUR cable drum features our CCAT 5e PUR bulk cable and HIROSE® RJ45 connectors equipped with NEUTRIK® etherCON® cable connector protection and the extremely robust GT 310 SCHILL® cable drum. It also features a flexible AWG 26/19 inner conductor and a special TPE-V stabilizer and is ideal for audio networks, lighting control and EtherSound™ systems.
This cable does not only excel because it is reelable and exceptionally robust but offers high flexibility and a tight bending radius as well. It is the ideal choice for patch cables, device connection cables and mobile applications, stage operations and outdoor transmissions as well. The cable supports the PoE IEEE 802.3af-2003 standard (15.4W).
- Highly flexible, robust, reelable
- PUR jacket for mobile indoor/outdoor applications
- Data class CAT 5e (100 MHz)
- Overall shield S/UTP
- AWG 26/19, with 19 strands/conductors
- PoE (15.4W) IEEE 802.3af-2003 max. channel PoE (15.4W) 67 m
- NEUTRIK® etherCON® cable connector protection + HIROSE® RJ45 connector
- SCHILL® cable drum
- Transparent shrink-on tube for easy cable identification
Applications: Data, Ethernet, audio networks, lighting control, EtherSound™
(*) Important note - "Products on request": Some product variants are marked with (*) under "Colors & lengths" below. Such products are only available on personal request. Please contact your Cordial Sales Key Account Manager by e-mail or telephone or send an e-mail to the Cordial Sales address vertrieb@cordial-cables.com . Thank you very much!
