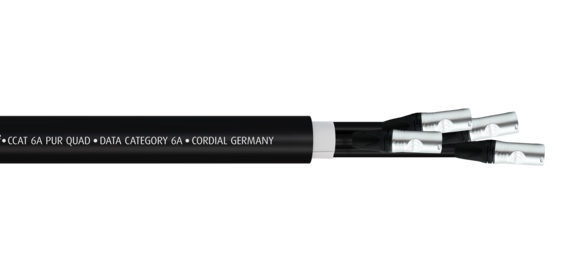

The CSE NN 6A PUR QUAD is a high-performance multicore cable that can simultaneously manage four Ethernet routes of data class CAT 6A (Class EA) with a bandwidth of 500 MHz at transmission rates of up to 10 Gbps.

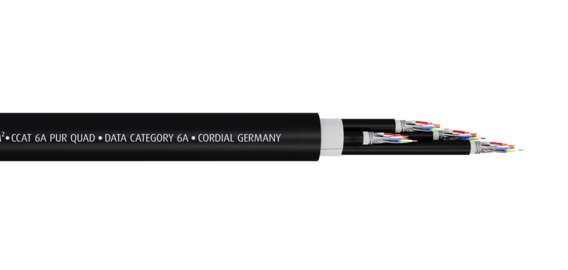

It features our CCAT 6A PUR QUAD bulk cable and 8 x NEUTRIK® etherCON® CAT6A connectors.
Due to its double shielding, a flexible inner conductor (AWG 24/7) and a robust yet flexible PUR outer jacket, it is highly powerful and reliable.
This cable supports Power over Ethernet (PoE++) with an output of 99.9 watts and is therefore predestined and tailor-made for audio networks, lighting control, EtherSound™ and mobile applications with a range exceeding 100 meters. It is ideal for use in mobile applications, stage operations and outdoor transmissions.
- Multicore 4 x CAT 6A
- Flexible, robust, reelable
- PUR overall jacket for mobile indoor/outdoor applications
- Data class CAT 6A (500 MHz)
- Overall shield S/FTP
- AWG 24/7, with 7 strands/conductor
- PoE++ (99.9W) complying with IEEE 802.3bt-2018 standard
- max. channel PoE (15.4W) 97 m
- NEUTRIK® etherCON® connector
- transparent shrink-on tube for easy cable identification
Applications: Data, Ethernet, audio networks, lighting control, EtherSound™
