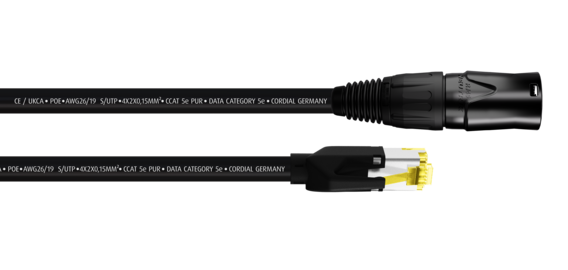

Our CSE NH 5e PUR data patch cable features our CCAT 5e PUR bulk cable and and HIROSE® RJ45 connectors equipped with NEUTRIK® etherCON® cable connector protection. The cable also features a flexible AWG 26/19 inner conductor and a special TPE-V stabilizer and is ideal for audio networks, lighting control and EtherSound™ systems.
This cable does not only excel because it is reelable and exceptionally robust but offers high flexibility and a tight bending radius as well. It is the ideal choice for patch cables, device connection cables as well as mobile applications, stage operations and outdoor transmissions. The cable supports the PoE IEEE 802.3af-2003 standard (15.4W).
- Highly flexible, robust, reelable
- PUR jacket for mobile indoor/outdoor applications
- Data class CAT 5e (100 MHz)
- Overall shield S/UTP
- AWG 26/19, with 19 strands/conductors
- PoE (15.4W) IEEE 802.3af-2003 max. channel PoE (15.4W) 67 m (
- HIROSE® RJ45 connectors with NEUTRIK® etherCON® cable connector protection.
- Transparent shrink-on tube for easy cable identification
Applications: Data, Ethernet, audio networks, lighting control, EtherSound™
