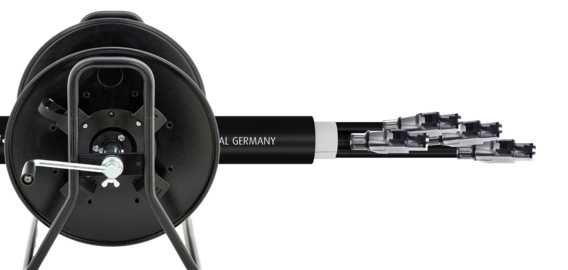

Our CSE HH-SD 6A PUR QUAD cable drum features our CCAT 6A PUR QUAD bulk cable combined with 8 x Telegärtner® RJ 45, CAT6A, MFP8 IE connectors and the extremely robust SCHILL® cable drum (SK 4601RM oder SK4823RM).
Due to its double shielding, a flexible inner conductor (AWG 24/7) and a robust yet flexible PUR outer jacket, it is highly powerful and reliable.
This cable supports Power over Ethernet (PoE++) with an output of 99.9 watts and is therefore predestined and tailor-made for audio networks, lighting control, EtherSound™ and mobile applications with a range exceeding 100 meters. It is ideal for use in mobile applications, stage operations and outdoor transmissions.
- Multicore 4 x CAT 6A
- Flexible, robust, reelable
- PUR overall jacket for mobile indoor/outdoor applications
- Data class CAT 6A (500 MHz)
- Overall shield S/FTP
- AWG 24/7, with 7 strands/conductor
- PoE++ (99.9W) complying with IEEE 802.3bt-2018 standard
- max. channel PoE (15.4W) 97 m
- Telegärtner® RJ 45, CAT6A, MFP8 IE connector
- transparent shrink-on tube for easy cable identification
- SCHILL® cable drum (SK 4601RM (25 m)), SK4823RM (50 und 75m))
Applications: Data, Ethernet, audio networks, lighting control, EtherSound™
(*) Important note - "Products on request": Some product variants are marked with (*) under "Colors & lengths" below. Such products are only available on personal request. Please contact your Cordial Sales Key Account Manager by e-mail or telephone or send an e-mail to the Cordial Sales address vertrieb@cordial-cables.com . Thank you very much!
