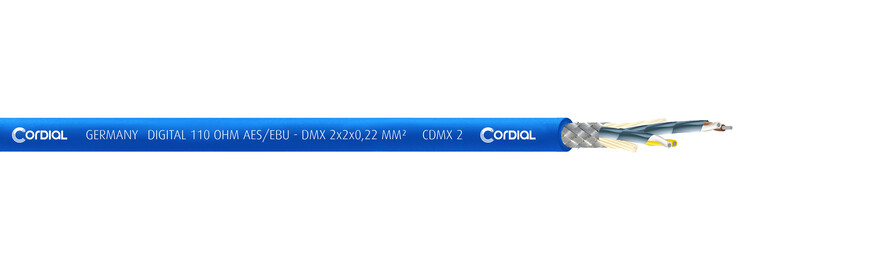

CORDIAL can offer you the CDMX 2, a high-grade data cable with 4 conductors for a safe (110 Ω DMX or AES/EBU) signal transmission. To prevent electrical interferences, the two conductors are protected by one aluminum foil shield each and a Cu spiral wound screen. Despite of this sophisticated interior design/structure this cable is highly flexible and bendable. All these factors make the CDMX2 a suitable cable for mobile lighting truss installations as well as for fixed installations. This digital control cable allows a 5-pin configuration.
Light DMX
CDMX 2
Digital Control Cable
Product information
| Jacket | PVC |
technical data
Technical facts
| Conductor area | 0.22 mm² |
| Composition of cores | 2 twisted pairs |
| AWG | AWG 24 |
| Shielding | tinned copper braided screen + foil (PT/AL) + drain wire |
| Composition of conductor | 7 x 0.20 |
| Pair screen | foil (PT/AL) + drain wire |
| Material | tinned copper |
| Conductor isolation | PE |
| Conductor resistance | 95 Ohm/km |
| Capacity cond.-cond. (pF/m) | 42 pF/m |
| category | DMX-AES/EBU-110 Ohm |
| weight bulk cable | 52 g/m |
| diameter | 6.4 mm |
| test voltage | 500 V eff. |
Lengths & colours
| Colour | Matchcode | item no. |
| CDMX 2 BLACK 100 | 10430 | |
| CDMX 2 BLACK 500 | 10431 | |
| CDMX 2 BLUE 100 | 13742 | |
| CDMX 2 BLUE 500 | 13741 |
